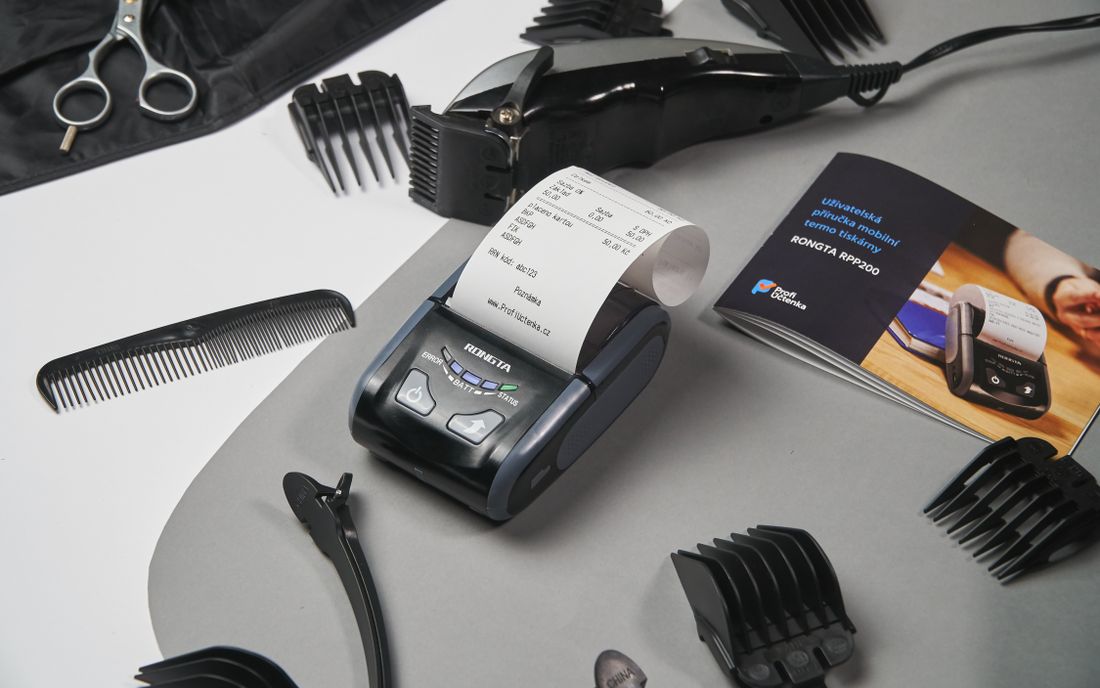

Looking after a label printer: print head, platen and sensor

A label printer printed perfectly in the morning, and after lunch a white streak appeared across the barcode. Or a new roll went in and the printer started printing off-position. Often you do not need an engineer: the head has dust and adhesive residue on it, or the sensor has not yet "recognised" the new roll. Here is a simple care routine.

Why a printer starts to print faintly

Direct thermal and thermal transfer printers heat the label along a thin strip called the print head. The head is made of very small heating dots. If dust, label adhesive or paper crumbs stick to them, that dot stops printing and a white streak appears on the output. If the streak crosses a barcode, the code will not scan. The platen roller presses the label against the head: when it gets dirty or glazed, the label slips and the print comes out faint on one side.

The cleaning routine

First switch the printer off and let the head cool. Use the cleaning agent named in the printer's manual: usually a lint-free swab dampened with isopropyl alcohol, or a special cleaning pen. Do not touch the heating dots with your fingers or bring metal tools near them, because the head scratches easily. A schedule like this is enough:

• after every roll: wipe the head and the path the label travels;
• once a week: wipe the platen and blow out dust;
• once a month: wipe the sensor window and inspect inside the cover.

Cleaning takes a minute or two per roll. If three rolls change in a day, that is 3 × 2 = 6 minutes, far cheaper than reprinting a spoiled batch of labels. In a warehouse with a lot of carton dust, shorten these intervals. On a thermal transfer printer watch the ribbon too: it must not be narrower than the label and must run without creases, because a creased patch will not print.

The sensor and calibration

The printer learns where a label begins from a sensor, by the gap between labels or by a black mark on the back. If you change the roll type (another size, another supplier, a clear backing), recalibrate the sensor. Many printers have a button or a menu item for this. Without calibration the printer prints off-position: the code runs to the edge or one label is printed across two. A dusty sensor window also makes mistakes, so wipe it monthly.

The routine for changing a roll:

1. Take out the old roll and wipe the label path.
2. Load the new roll and slide the guides to its width.
3. Choose the sensor type: gap or black mark.
4. Run the calibration.
5. Print one test label and scan the code.

Darkness and speed settings

Do not set the darkness, meaning the heat level, higher than necessary. Extra heat spreads the lines, the code turns "fat" and the head wears out sooner. Find the lowest value at which the code scans confidently. At high speed a small code loses quality, so slow down on a small label. When you fit a new roll or ribbon, print three to five test labels and read them with a scanner. If you change the settings, write the values down on paper, otherwise the next employee cannot recover them.

Symptom and cause

• One vertical white line: a head dot is dirty or damaged. Clean first; if that does not help, the head needs replacing.
• One side faint: a dirty platen, or the label has drifted. Clean the platen and set the guides to the roll width.
• The print is shifted: the sensor is not calibrated.
• Lines are smeared and thick: the darkness is too high.
• The ribbon is wrinkled: it is loaded wrongly.
• Nothing prints on thermal transfer: the ribbon is fitted the wrong way round or has run out.
• The printer will not feed or keeps stopping: the roll has run out, the cover is not fully closed or adhesive has built up along the path.
• The code is cut off at the edge: the template size does not match the roll.

Conclusion

Printer care takes little time: clean the head and platen, calibrate the sensor, keep darkness moderate. Remember that the head is a consumable: where printing is heavy, plan a spare head in advance and note the lifetime given in the manual. After that white streaks and shifted prints become rarer. The Shtrix team draws up a care schedule for your printers, records the settings and checks test labels with a scanner.
